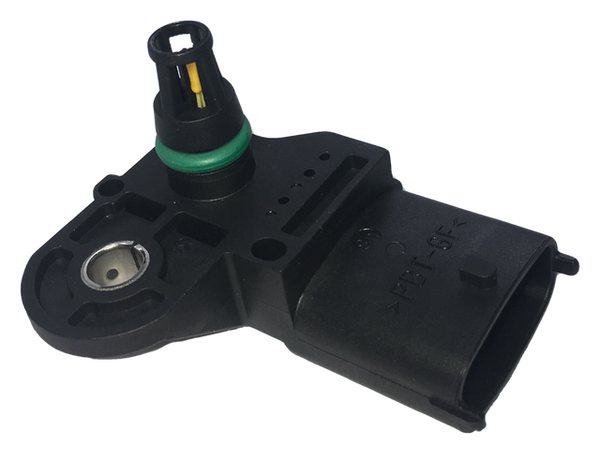

Genuine BOSCH T-MAP SENSOR combines a 3 Bar MAP sensor and an intake air temperature sensor all into one compact unit.


Suitable for vehicles running up to 29psi of boost, compatible with all aftermarket ecus, calibration data is supplied.


The composite sensor body resists heat soak allowing the sensor to be mounted directly in the plenum without adversely effecting the IAT measurement . Ideally, the sensor should be mounted on the top face of the plenum which reduces the risk of condensation accumulating on the sensor as well as radiant heat transfer from the cylinder head. This sensor is particularly well suited for custom intake manifolds that have no provision for a MAP sensor but can also be welded to a factory intake manifold if needed.


Plug connector and aluminum mounting plate also available, as well as higher bar ratings.
