Link ECU TCC08 8 Channel EGT to CAN Module 101-0388

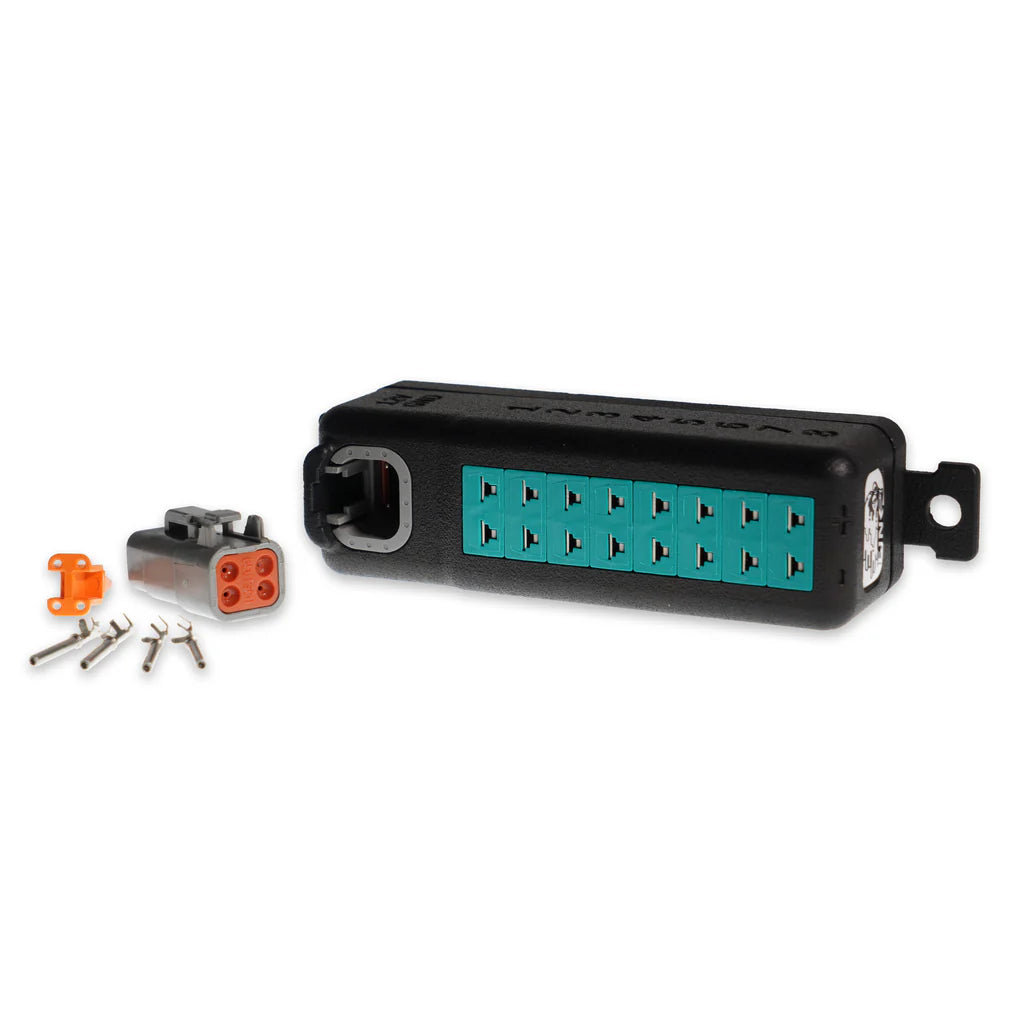

TCC08 8 Channel EGT to CAN Module

The TCC08 EGT to CAN module allows you to connect up to eight Type-K thermocouples and send the values via CAN bus and/or monitor them directly on your wireless enabled device.

Type-K thermocouples are suitable for various applications such as measuring exhaust gas temperature (EGT), temperatures before/after the intercooler, turbo housings, cylinder head temperatures, water temperature, oil temperature and more. All measurements are cold junction compensated with a measuring range of 0 to 1250°C in 0.25°C resolution (14bit).

The TCC08 features a four-pin DTM connector for CAN/power and miniature K-sockets. It is pin compatible with Links standard CAN pinout and CAN cables range. CAN 2.0A/B standard is supported with flexible configuration.
