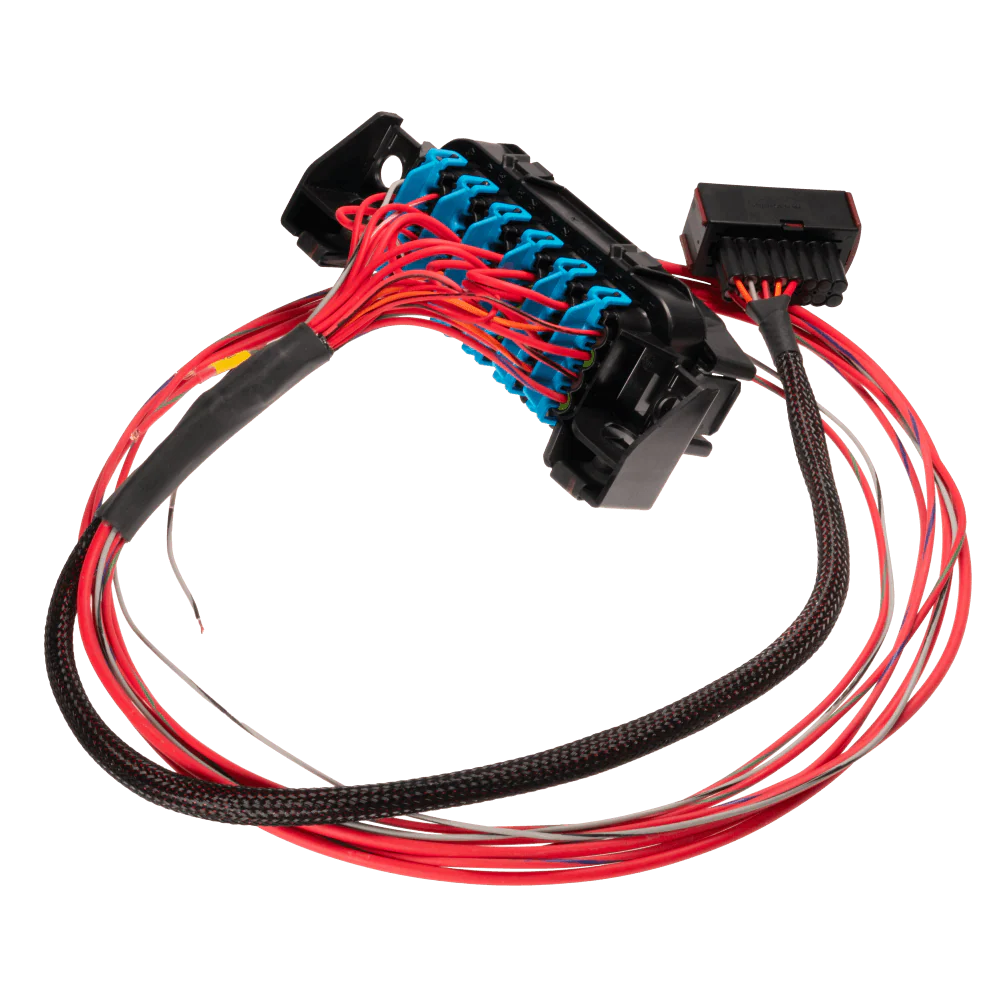

Link ECU LS Harness - Fuse and Relay Box 101-0310

LS Gen 4 Map Adapter Harness

•     Highly recommended item to greatly simplify the wiring connections between the              Link  LS Terminated Engine Harness and the car chassis.
•    When added to the Link LS harness the user only needs to connect 2 to 4 flying lead          wires themselves to have a complete wiring system capable of running an engine - no        special crimping tools, splicing or complex circuits required.  The 4 connections are;            Battery 12V, Ignition Switch, optionally Fuel pump and Cooling Fan.
•    Provides fused power to all engine and ecu connected devices, takes care of the often        complex "ecu hold power" wiring for models with stepper motor idle valves, provides        3** high current ecu controlled outputs for direct fuel pump and fan connection.
•    Fully sealed high quality rugged Busman enclosure, IP67 rated.
•    Made in USA with genuine high quality Song Chuan automotive relays, high temp TXL        wire, ultrasonic welded splices.
•    The 4 flying leads for connection to Battery, Ign switch, Fuel pump and Fan are                   1500mm length, the main bundle that connects to the engine harness is 500mm                  length.
•    See Terminated LS Engine Harness Manual linked below for connection details and              further info.
