DV+ T9356 Diverter Valve for Dodge Dart, BMW and Fiat Abarth applications

$225.00

Introducing The New DV+

DV Plus T9356 Car and Product Comp 1

Suits Dodge Dart, BMW And Fiat Abarth Applications



GFB’s DV+ Solution Couldn’t Be Simpler – Keep What Works And Replace What Doesn’t.

BEWARE of counterfeit products; ONLY buy from authorized dealers on our website

Protected by Patents in United States of America, China & Australia

PCT Patents Pending

  • Retains the factory solenoid coil for seamless integration
  • Replaces plastic valve parts with metal for reliability and strength on chipped engines
  • Direct-fit replacement with GFB’s TMS benefits
  • Exclusive “pilot-actuated” valve mechanism for rapid response at high boost

GFB expands the DV+ range with a direct-fit solution for the weak factory diverter valve used on many European vehicles.

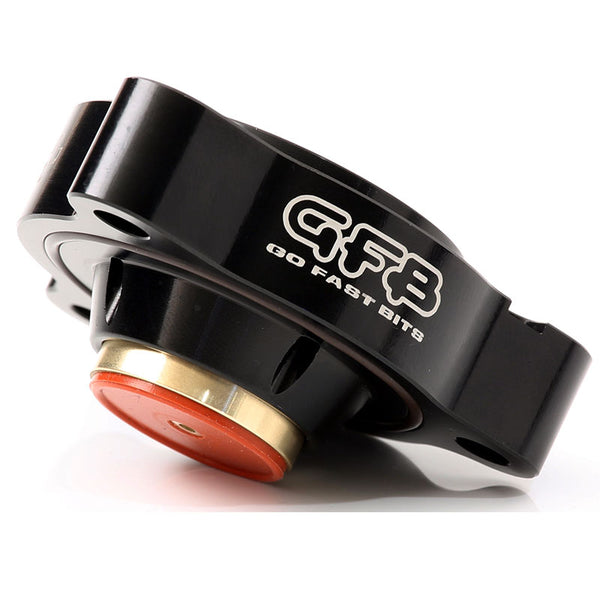

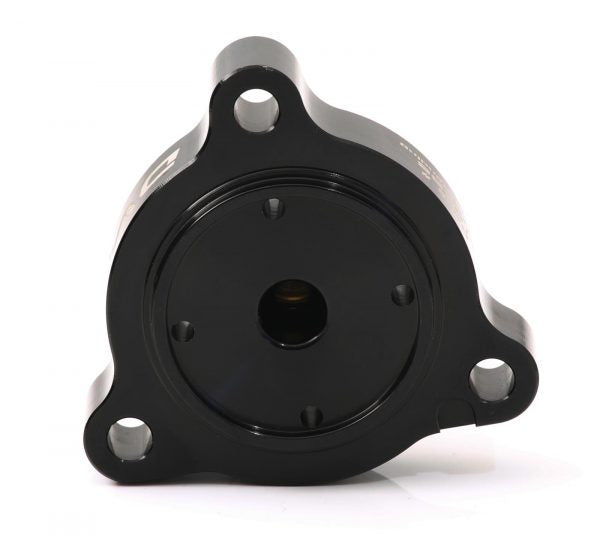

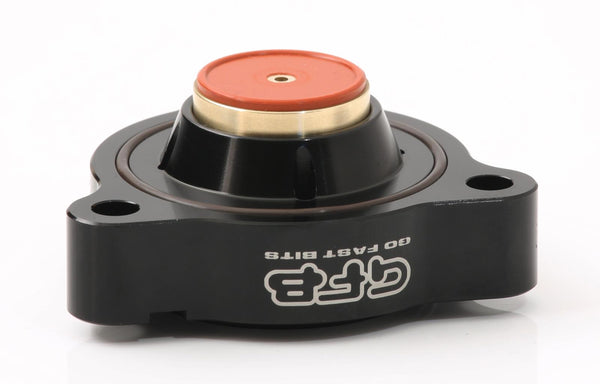

The solenoid coil itself from the factory-fitted valve is great (the ECU opens it faster than any pneumatic valve so why replace it?), but the weak point however is the valve mechanism itself. So GFB’s DV+ solves this problem by replacing just the valve parts with an anodised billet aluminium housing fitted with a brass piston machined to exacting tolerances.

The end result is sharper throttle response, lightning-fast valve actuation, and it will hold as much boost as you can throw at it. Read all about the DV+ story on the next page.

feature-2

Other manufacturers’ products involve replacing the entire system with a traditional pneumatic valve, requiring long vacuum hose runs, additional parts for tapping into the intake manifold vacuum, plus either a different solenoid valve to actuate the pneumatic valve or a ballast resistor to plug into the OE wiring loom. All these additional items result in a product that is slower, less responsive, more expensive and takes much longer to install.

GFB’s DV+ solution on the other hand is more responsive, less expensive, easier to install, and doesn’t cause compressor surge/turbo flutter. Oh, and it doesn’t require different springs or frequent re-builds.

The DV+ Story: Better Performance – More Reliable

Exploded view labels snagit

Many late-model European cars use ECU controlled solenoid-type diverter valves. This is a good concept because the valve can react very quickly and it only opens when it needs to.

However, there are some problems with these valves. There are typically two types of solenoid-actuated diverter valves found standard on VAG and European cars, both of which have their shortcomings.

feature-4

Common OE Problem #1
The diaphragm types are commonly known to rupture, especially when boost and temperature are increased as a result of chip tuning.

feature-5

Common OE Problem #2
The plastic piston-type leaks far more than most people realise (by design, not from wear), and doesn’t always close after a high-boost gear shift.

Additionally, in both cases, the solenoid on the OE diverter is directly connected to the valve mechanism, which is not ideal because neither it nor the return spring are strong enough to open and close the valve reliably at high boost.

With problems like this, you can see why other aftermarket manufacturers assume the best solution is to replace the factory diverter entirely. Unfortunately though, whilst their replacement kits might be stronger than the factory diverter, their slower response speed and lower flow do not justify the extra cost and complexity – more of a compromise than a solution.

GFB has taken a different approach to deliver a complete solution that solves existing problems and improves performance, without compromise or a hefty price tag.

The DV+ addresses the factory valve problems with a very simple and elegant solution. Keeping the factory solenoid retains all the benefits of the stock system, and replacing the valve parts with indestructable metal components ensures strength and reliability no matter how much boost you run.

That’s not all. Rather than using the solenoid to directly actuate the valve, we’ve introduced a unique “pilot-actuation” system. This means the solenoid controls the air pressure that is used to open and close the piston, so it doesn’t matter how much boost you push through it, the DV+ will open and close reliably without ever exceeding the solenoid’s capability.

This feature also improves on the factory system by opening the valve progressively in response to boost pressure, so it only opens as much as required to get the job done (the factory valve simply opens and shuts, it cannot partially open if boost pressure is low), resulting in better throttle response.

Unnecessary Replacement Kits Are A Compromise, Not A Solution

feature-6

Protected by Patents in United States of America, China & Australia

PCT Patents Pending



DV+ Tech Tip

About this range

When you just want  performance

European Manufacturers Are Pushing Their Engines To The Limit. Get A DV To Match.

GFB’s DV+ diverter valve range offers a direct-fit performance solution for the weak factory diverter valves used on many modern vehicles.

PCT Patents Pending

By retaining the factory ECU control and recirculating the vented air, the DV+ is a purely performance-oriented product that offers the following benefits:

  • Sharper throttle response
  • Faster boost recovery on gearshift
  • Solves boost leaking issues
  • Built to last

Make sure you purchase ONLY from our approved dealers to be sure you are getting a genuine product. We are aware of counterfeits on Ebay and Amazon and getting these removed but they do not notify any purchasers of counterfeit product After purchasing.


Vehicle Applications

DV+ T9356 Diverter Valve for Dodge Dart, BMW and Fiat Abarth applications also suits:

  • ABARTH 500 Abarth 2007-On (US Version Only)
  • ABARTH 500 Abarth 2007-On (US Version Only)
  • ABARTH 500 Abarth 2007-On (US Version Only)
  • BMW 114i/116i/118i F20/F21 (N13 Engine) 2011-15
  • BMW 114i/116i/118i F20/F21 (N13 Engine) 2011-15
  • BMW 135i E81/E82/E87/E88 (N55 Engine) 2010 - 2013
  • BMW M135i F20 (N55 Engine) 2011 - On
  • BMW M235i F22 (N55 Engine) 2014-On
  • BMW 335i/335i Xdrive E90/E91/E92/E93 N55 2010-2012
  • BMW 435i F32/F33/F36 (N55 Engine) 2013 - 2016
  • BMW 535i F07/F10/F11 (N55 Engine) 2010-On
  • BMW 640i F06/F12/F13 (N55 Engine) 2012-On
  • BMW 740i F01/F02/F03/F04 (N55 Engine) 2012 - 2015
  • BMW X5 XDrive35i E70 (N55 Engine) 2011 - 2013
  • BMW X6 XDrive35i E71 (N55 Engine) 2011-13
  • BMW 316i/320i EfficientDynamics F30/F31/F34/F35 (N13 Engine) 2012 - 2015
  • BMW 335i F30/F31/F34/F35 (N55 Engine) 2011 - On
  • BMW X5 XDrive35i F15 (N55 Engine) 2013 - On
  • ABARTH Fiat Abarth Spider 124 2016-On
  • ALFA ROMEO Giulietta 1.4TB (MultiAir, Not T-Jet) 2010-20
  • ALFA ROMEO Giulietta 1.4TB (MultiAir, Not T-Jet) 2010-20
  • ALFA ROMEO Giulietta 1.4TB (MultiAir, Not T-Jet) 2010-20
  • JEEP Renegade 1.4 Multiair 14-On
  • ALFA ROMEO MiTo 1.4 MultiAir 2009 - 2018
  • ABARTH Punto/Punto EVO Abarth 1.4 Multiair
  • ABARTH Punto/Punto EVO Abarth 1.4 Multiair
  • BMW X3 XDrive35i F25 (N55 Engine) 2010-On
  • BMW 5 ActiveHybrid F10 (N55 Engine) 2011-16
  • BMW 5 ActiveHybrid F10 (N55 Engine) 2011-16
  • ALFA ROMEO Giulia Quadrifoglio 2.9 2016 - On (Two Valves Needed) Note : Two Valves Needed
  • JEEP Renegade 1.3 GSE 2019-On
  • BMW X1 XDrive35i (N55 Engine) 2013-2015
