AIC RD3 Race Dash

$862.50
See more: LINK

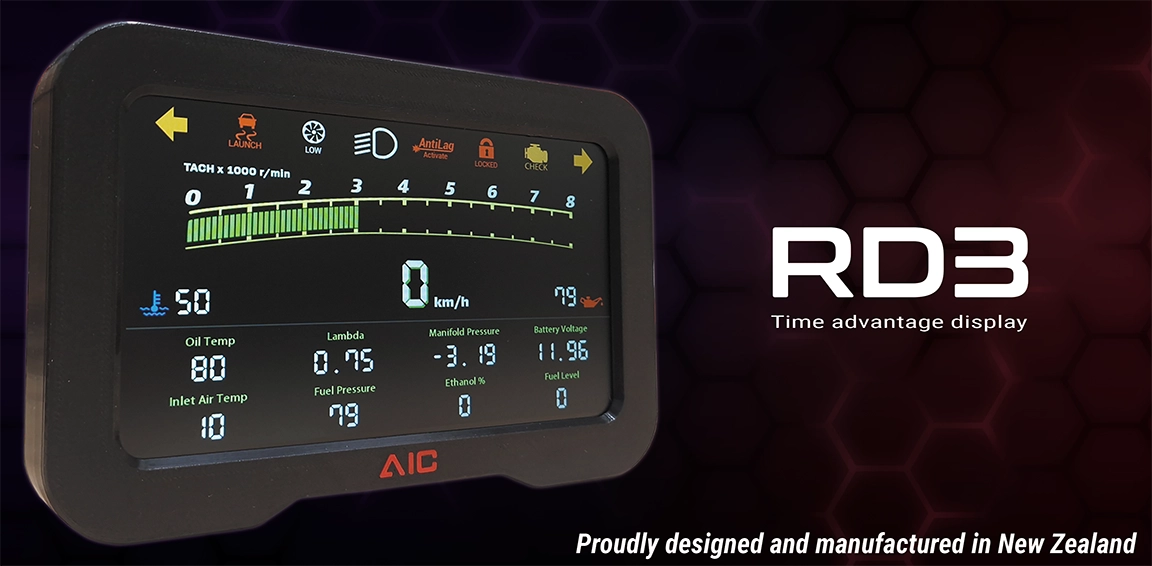

RD3 is a 7” crystal clear sunlight readable viewing experience in a compact and lightweight housing.

Super fast load up times of less than 1 second gives the user a time advantage over other displays that can take up to 60 seconds to load and read data in a critical competitive environment. The display is user configurable via the free AIC Dash Configurator software. Users can change icons, readouts, labels and configure advanced warning banners. The software also allows upgrading to new features as they are released. The whole system draws less than 150mA of current. All data is accessed via CanBus and can be setup up in under 5 minutes.

Features

Reliable

RD3 has been put through rigorous testing in multiple motorsport applications including rally.

Fast

Super fast processing power, no waiting for operating systems to load. RD3 is fully loaded within 1 second of applied power.

Bright

Using a 1000nit Sunlight readable IPS display, full rich colors are viewable from any angle.

Customisable

Customise the dash to suit your application with the free Dash Configurator software.

  • 7″ Sunlight Readable IPS Display

  • 190x124x26mm Overall Dimensions

  • 330g Total Weight

  • Adjustable Brightness

  • USB-C Interface

  • Deutsch DTM Connector

  • PETG Plastic Housing

  • 1 Second Load Time

  • Free Software

  • Made in NZ

  • Local support

  • 150mA Current Draw @ 12VDC

  • Advanced Warning Banner

  • Upgradable Firmware

Software

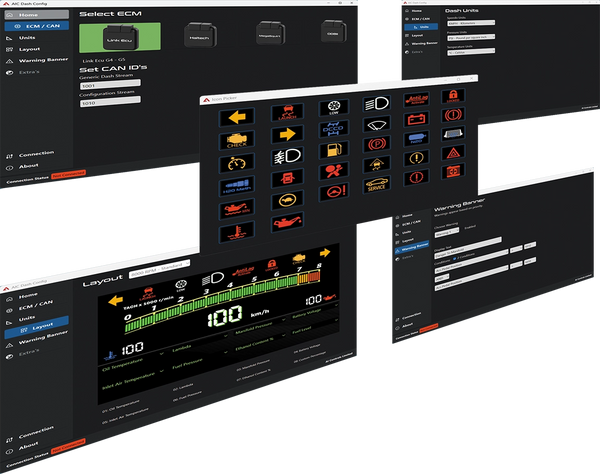

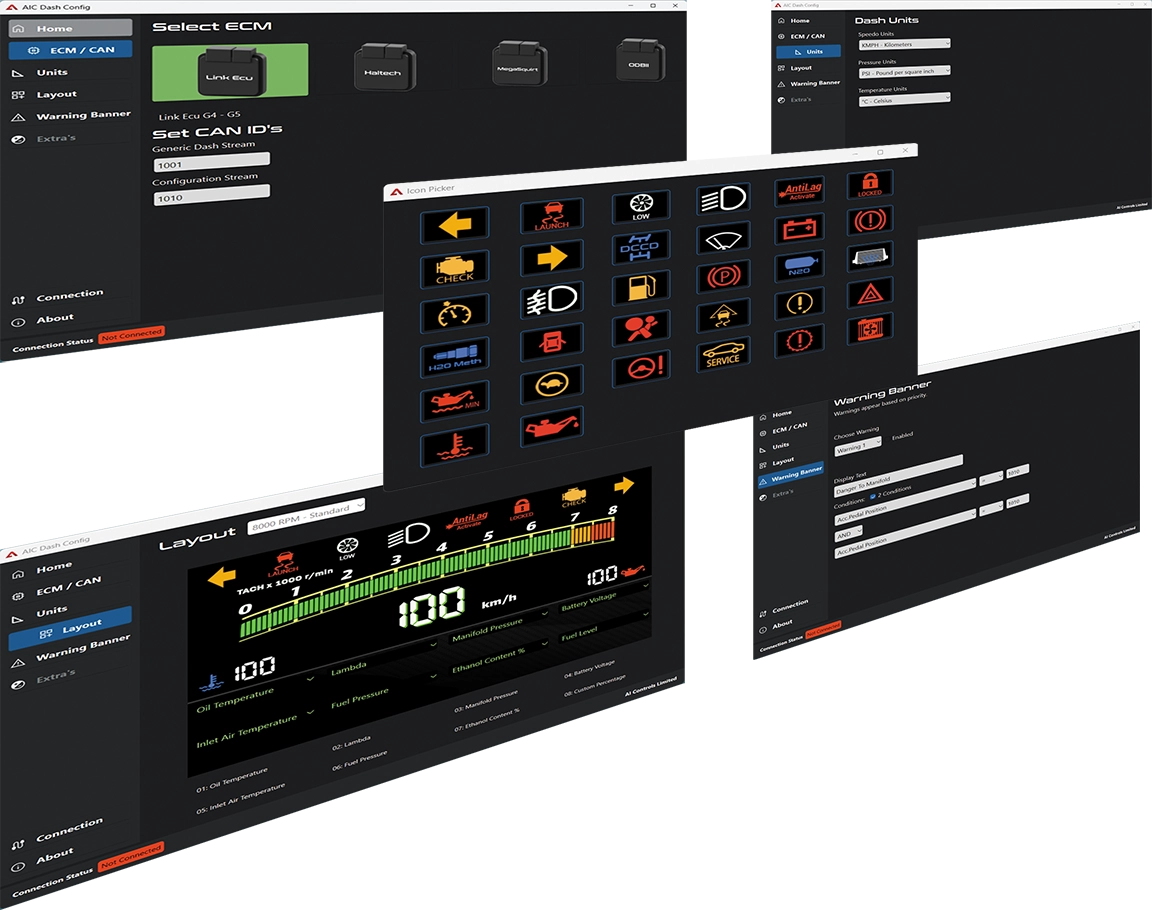

Configure RD3 with easy to use windows based software.

  • Select ECU

  • Set CAN ID’s

  • Set dash units

  • Select different layouts and parameters

  • Choose which icons to display

  • Set warnings for the warning banner

Download Software

Connection

Wiring

RD3 comes with an industry standard Deutsch DTM 4 pin receptacle ready to connect directly to many standard automotive CAN interfaces. The dash requires a 1A fused supply and voltage between 5-24VDC.

Pin No. Function
01

Switched 12V Supply
02

Ground
03

Can Bus Low Signal
04

Can Bus High Signal

Mounting

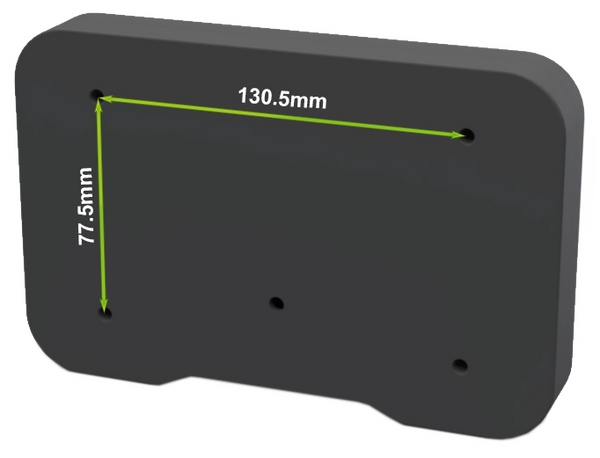

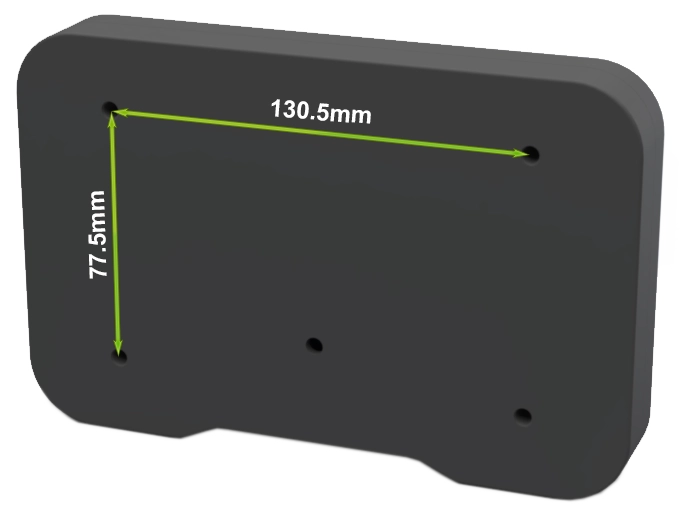

The dash comes with 4x M6 tapped holes for mounting, Each tapped hole allows a bolt depth of 15mm. Hole pattern: 130.5×77.5mm


CAN Setup

Link ECU

Link ECU users send “Generic Dash” and optionally send a custom “AIC” CAN stream for additional functionality. The generic dash is selected from the preset and sent to an ID chosen by the user, by default this ID is set to 1000. The AIC stream, by default is set to 1010.

Link ECU Generic Dash Features

  • Accelerator Pedal Position

  • Barometric Pressure

  • Battery Voltage

  • Coolant Temperature

  • Engine Speed

  • Ethanol Content %

  • Exhaust Cam Position

  • Exhaust Cam 2 Position

  • Fuel Pressure

  • Gear Position

  • Ignition Angle

  • Inlet Cam Position

  • Inlet Cam 2 Position

  • Injection Timing

  • Injector Actual Pulse Width

  • Injector Duty Cycle

  • Inlet Air Temperature

  • Lambda

  • Lambda Bank 2

  • Manifold Pressure

  • Mass Air Flow

  • Oil Pressure

  • Oil Temperature

  • Sec. Injector Duty Cycle

  • Throttle Position

  • Wheel Speed – Left Front

  • Wheel Speed – Left Rear

  • Wheel Speed – Right Front

  • Wheel Speed – Right Rear

AIC Stream features

  • Speedo

  • Custom Pressure

  • Top Icons

  • Custom Temperature

  •  Night Mode (Dim Display)

  • Custom Percentage

    Available on order shipping may take an additional 2-5 days from time of purchase
