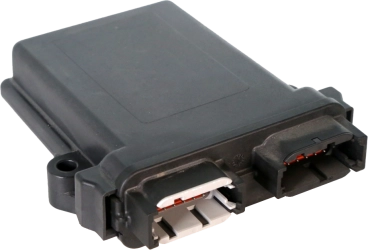

AIC 666 CAN Expansion Module

$517.50
See more: Unknown Type
The 666 Module is a CAN expander unit that provides extra functionality to existing ECM’s. The unit can run on 12V and 24V DC systems.

Features

Digital Inputs

6 Protected digital inputs, active low.

  • Over Voltage & Current protection

Analog Inputs

6 Protected analog inputs. 10 Bit resolution

  • Over Voltage & Current protection

Digital Outputs

6 Protected digital outputs, active low. Solid state, PWM capable.

  • 3x 0.5A Outputs

  • 3x 2.0A Outputs

  • Over Voltage & Current protection

  • Flyback/Surge protected

Connection

Industry standard Deutsch DTM 12 pin connectors (2). Connectors and terminals provided

Available on order shipping may take an additional 2-5 days from time of purchase
