VTA T9454 DV+ BLOW OFF VALVE SOUND! FORD FOCUS ST

$309.00

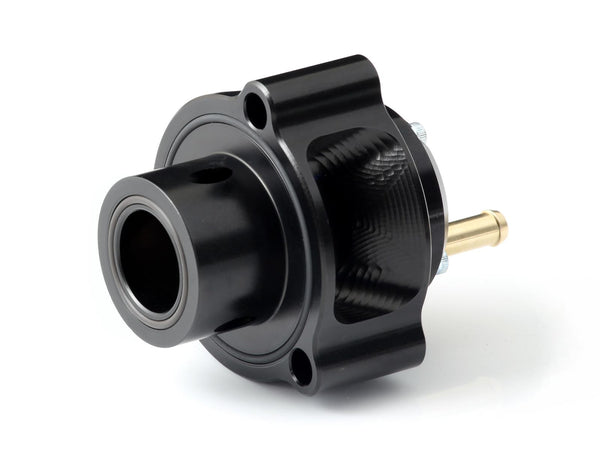

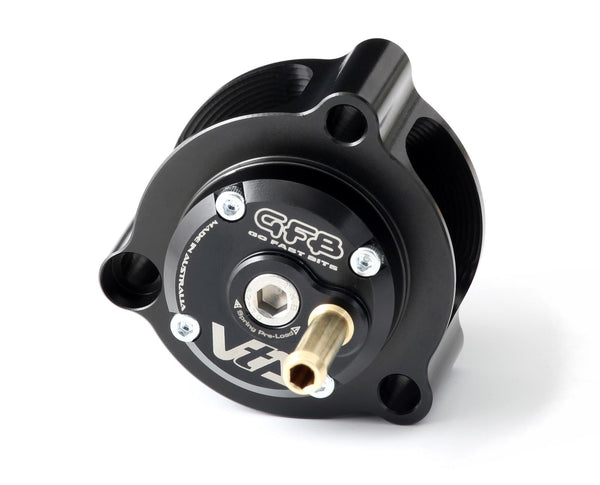

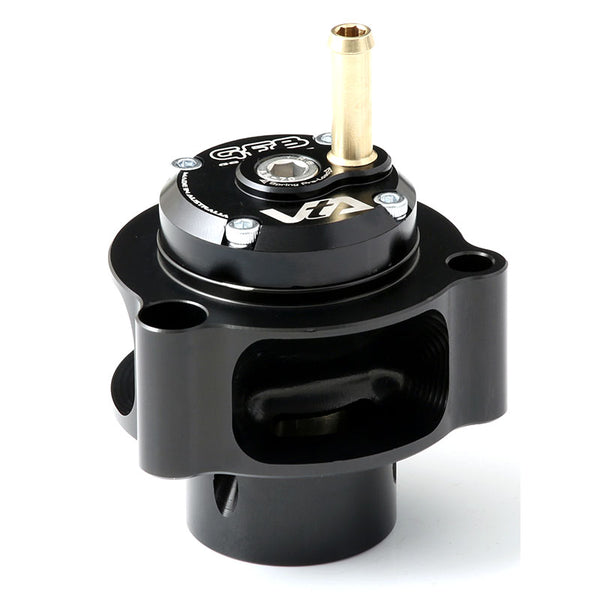

VTA T9454 DV+ Performance, Blow Off Valve Sound!

The VTA is a performance blow-off valve solution for Ford Focus ST and Borg Warner turbos.

WORLDWIDE PCT PATENTS PENDING

PROTECTED BY CHINA UTILITY MODEL PATENTS; CN206054094U & 206129406

If you want sound with your performance (or performance with your sound!), GFB’s VTA delivers just that! By combining the proven performance benefits of our ground-breaking DV+ with atmosphere venting, the VTA delivers an aggressive blow-off sound, improved throttle response and boost recovery, as well as superior boost holding and reliability in extreme conditions.

The factory diverter valve commonly found on these turbos has two distinct issues – reliability, and performance. Oh yeah, it also doesn’t make any noise. Here’s how the VTA addresses these problems.

Reliability – There are two ways in which the factory diverter valve can fail; the un-reinforced rubber diaphragm can rupture, and the metal valve stem that slides in the plastic cap can stick. In both cases, there is a risk to the turbocharger, as the ECU will attempt to compensate for a boost leak by increasing the wastegate duty cycle, which increases the turbo RPM significantly.

The VTA features CNC machined billet components that last a lifetime and cannot be damaged by high boost pressures or the associated increased charge temperatures.

Performance – The factory diverter valve typically operates in only two states – either fully open, or fully closed. When it opens at low boost, or during a partial throttle lift mid-corner, it causes increased lag and a noticeably non-linear boost transition, which is noticeable as a distinct “step” down in power as you roll off the throttle and the valve opens.

The VTA however allows the piston to open and close progressively in response to the amount of boost pressure present, so it only vents enough air to prevent compressor surge (the primary purpose of a diverter or blow off valve). This helps to smooth out boost transitions, making the throttle response more linear and predictable, and also minimizes lag introduced by the factory diverter valve.

Key features:

  • TMS Technology for faster boost recovery on gearshift and during throttle modulation
  • Improved boost holding ability
  • Atmosphere venting for blow-off sound
  • Simple, direct bolt-on kits include everything you need to install
  • Manufactured in Australia in accordance with ISO 9001

VTA or DV+?

Depends if you want sound or not. Both valves are constructed with the same quality materials and valve mechanism, and both offer the same performance and reliability benefits. However, the VTA vents to atmosphere for sound whilst the DV+ recirculates the air to keep it quiet.

Why choose a VTA over a “BOV spacer”?

“BOV spacers” are cheap and they make sound. But that’s it. All the inherent performance and reliability issues you get with the factory diverter valve remain, because a spacer doesn’t change the factory diverter components or operation method in any way. The VTA improves the operation of the factory diverter valve for sound AND performance.

About this range

VTA Performance Blow-Off Valve Solution

US Patent Number 10077709

Chinese Utility Patent Nos:  CN206054094U & 206129406

PCT Patents Pending

The VTA is a performance blow-off valve solution for Audi, VW, Skoda and SEAT vehicles with an electronic factory diverter valve.

If you want sound with your performance (or performance with your sound!), GFB’s VTA delivers just that! By combining the proven performance benefits of our ground-breaking DV+ with atmosphere venting, the VTA delivers an aggressive blow-off sound, improved throttle response and boost recovery, as well as superior boost holding and reliability in extreme conditions.

The VTA shares the successful DV+ design philosophy:

“Keep what works, replace what doesn’t”

This means we retain ECU control and the solenoid from the factory diverter to ensure the fastest possible response time, without the added and unnecessary cost of replacing the solenoid like some brands do.

The weak part of the factory diverter has always been the plastic valve mechanism – this is the part we replace. The VTA features CNC machined billet components that last a lifetime, and we also change the valve operation method for better performance. The factory diverter valve can only operate in two states – open, or closed. When it opens fully at low boost, or during a partial throttle lift mid-corner, it causes increased lag and a noticeably non-linear boost transition.

GFB pioneered the use of “pilot operation” in the DV+, which works by re-purposing the factory solenoid to control the pressure behind the piston rather than the piston itself. This allows the solenoid stroke to be much shorter, speeding up the response time and increasing the actuation force. More importantly, it allows the piston to open and close progressively in response to the amount of boost pressure present, which smooths boost transitions and reduces the lag caused by the factory diverter valve.

It is this design philosophy that makes the VTA not only the best performing blow off valve solution, but also the best value on the market.

Key features:

  • TMS Technology for faster boost recovery on gearshift and during throttle modulation
  • Improved boost holding ability
  • Atmosphere venting for blow-off sound
  • Retains ECU control
  • Simple, direct bolt-on kits include everything you need to install
  • Manufactured in Australia in accordance with ISO 9001

VTA or DV+?

Depends if you want sound or not. Both valves are constructed with the same quality materials and valve mechanism, and both offer the same performance and reliability benefits. However, the VTA vents to atmosphere for sound whilst the DV+ recirculates the air to keep it quiet.

Why choose a VTA over a “BOV spacer”?

“BOV spacers” are cheap and they make sound. But that’s it. All the inherent performance and reliability issues you get with the factory diverter valve remain, because a spacer doesn’t change the diverter valve in any way. The VTA improves the operation of the diverter valve for sound AND performance.

Why choose a VTA over a kit that includes a solenoid?

Because there’s no performance benefit to replacing the factory solenoid, only a much higher price! If a VTA with the factory solenoid can open in a couple of hundredths of a second, why pay more than you need to?


Vehicle Applications

VTA T9454 DV+ PERFORMANCE, BLOW OFF VALVE SOUND! also suits:

  • FORD AUSTRALIA Focus ST 2.0L EcoBoost (Mk3 2012-18)
  • FORD Focus ST 2.0L Ecoboost 2012-2018
