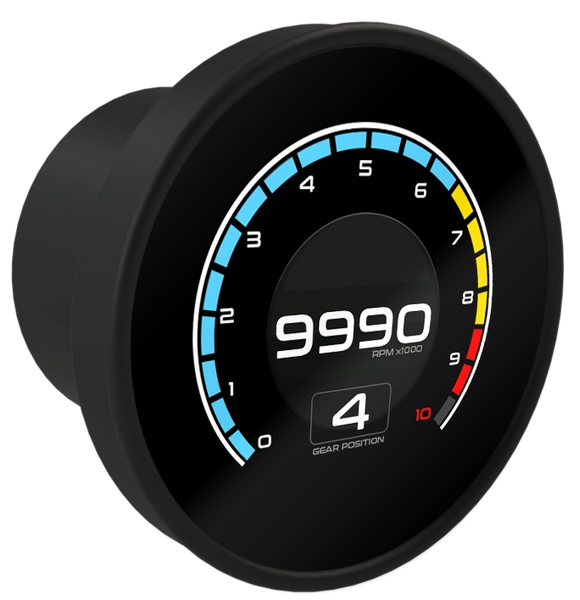

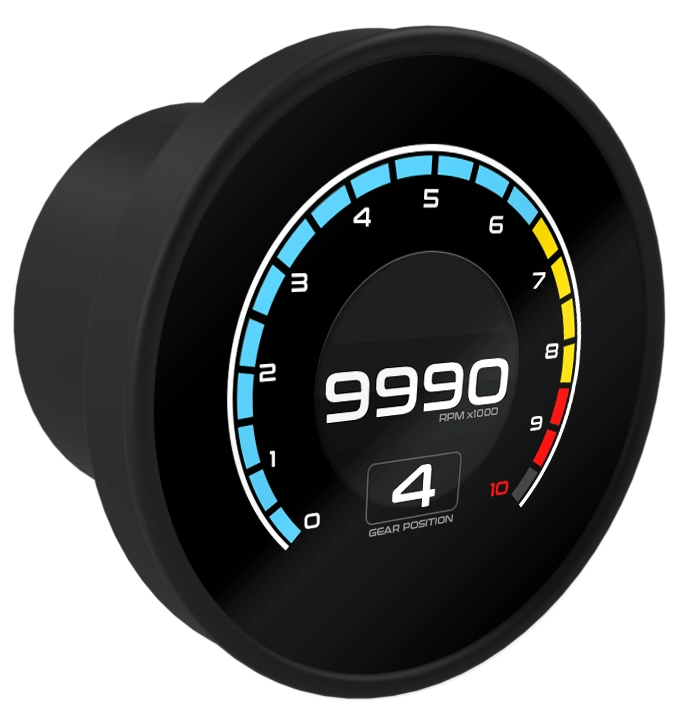

AIC ADV80 CAN GAUGE

$699.00
See more: LINK
Tags: link ecu

The ADV80 CAN Gauge is more than just a display, its a scan tool, oscilloscope and keypad all in one. Users can control and protect their vehicles with a singular device.

 The CAN gauge replaces traditional gauges for a clean and simple digital alternative by reading live data directly from the engine computer (ECM) on a vibrant colour sunlight readable IPS touch screen display.

Designed and manufactured in New Zealand with local support.

  • 46+ Readable Data Points

  • 6061 Aluminium Housing

  • 10 ECM Platforms

  • Control Boost & More

  • Vehicle Security

  • Firmware Upgradable

    Main Features

    • Anodised 6061 Aluminium Housing

    • 46+ Data Points

    • Dim Display Input

    • ECM Security

    • Fault Codes

    • Dual Point Data Scope

    • Adjustable Units

    • Adjustable Warnings

    • Adjust Boost Level

    • Adjust Traction Control

    • Enable/Disable Antilag

    • Enable/Disable Launch Control

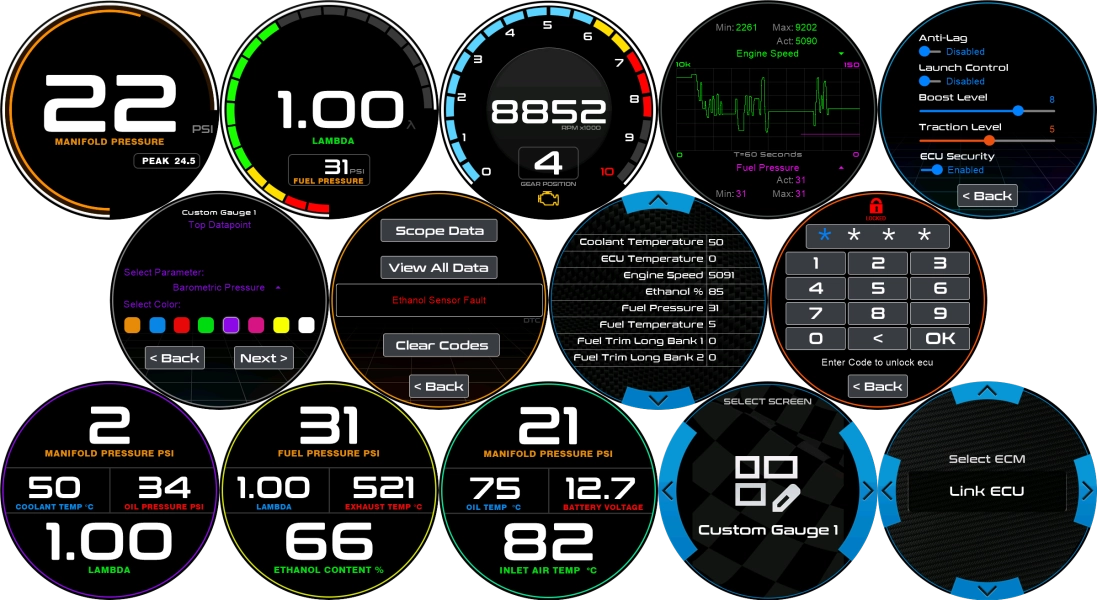

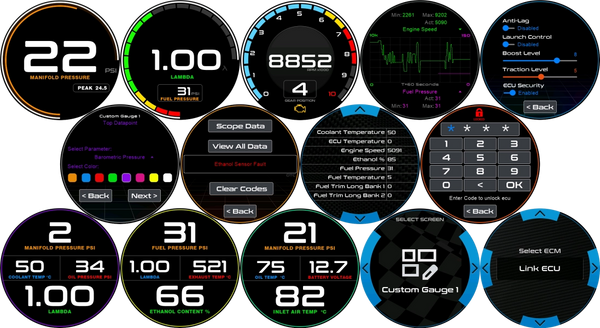

      Screens

      • Boost Gauge

      • Lambda Gauge (Dynamic)

      • Tachometer Gauge

      • Multi-Gauge A

      • Multi-Gauge B

      • Multi-Gauge C

      • User Defined Gauge 1

      • User Defined Gauge 2

      • Fault Code Monitor

      • Show All Data

      • Oscilloscope

      • Control ECM

      • Security

      • Settings

        Settings

        • Adjust Brightness w/Dimmer

        • Start-Up Screen

        • Pressure Units – PSI, Bar, kPA

        • Temperature Units – °C, °F

        • Speed Units – KM/H, MPH

        • Manifold Pressure Max – Adjust Scale

        • Manifold Pressure Warning

        • Lambda Warnings- Lean, Rich

        • Engine Speed Warning / Shift Light

        • Adjustable Tachometer bar setpoints

        • Enable Check Engine Light

        • Custom Gauge 1 Setpoints

        • Custom Gauge 2 Setpoints

        • Enable CAN Output

        • Select ECM

          CAN Data

          The gauge can read the following data points

          • Accelerator Pedal Position

          • Barometric Pressure

          • Battery Voltage

          • Coolant Pressure

          • Coolant Temperature

          • ECU Temperature

          • Engine Speed

          • Ethanol Content

          • Exhaust Cam Position

          • Exhaust Cam 2 Position

          • Exhaust Gas Temperature 1

          • Exhaust Gas Temperature 2

          • Exhaust Gas Temperature 3

          • Exhaust Gas Temperature 4

          • Exhaust Gas Temperature 5

          • Exhaust Gas Temperature 6

          • Exhaust Gas Temperature 7

          • Exhaust Gas Temperature 8

          • Fuel Pressure

          • Fuel Temperature

          • Fuel Trim Long Bank 1

          • Fuel Trim Long Bank 2

          • Fuel Trim Short Bank 1

          • Fuel Trim Short Bank 2

          • Gear Position

          • Ignition Angle

          • Inlet Cam Position

          • Inlet Cam 2 Position

          • Injector Pulse Width

          • Injector Duty Cycle

          • Injector Duty Cycle Secondary

          • Injector Differential Pressure

          • Inlet Air Temperature

          • Lambda

          • Lambda 2

          • Lambda Overall

          • Manifold Pressure

          • Manifold Peak Pressure

          • Oil Pressure

          • Oil Temperature

          • Throttle Position

          • Transmission Temperature

          • Vehicle Speed

          • Wheel Speed – Left Front

          • Wheel Speed – Left Rear

          • Wheel Speed – Right Front

          • Wheel Speed – Right Rear

            • Fault Codes

            Supported ECM’s

            • Link Engine Management

            • Haltech

            • Maxx Ecu

            • Emtron

            • Ford Barra

            • Hondata

            • ECU Masters

            • Motorsport Electronics UK

            • Megasquirt

            • Edelbrock

            • Wiring

              The Gauge comes with a pre terminated 6 pin harness, use the colour code below for connection. The gauge requires a 0.5A fused supply and 12V nominal DC voltage.

              01
              Black

              Ground
              02
              Red

              Ignition 12V Supply
              03
              Orange

              Dim Display
              04
              Yellow

              CAN High Signal
              05
              Green

              CAN Low Signal
              06
              Brown

              No Connection
