AIC 2.4"" CAN Gauge

$402.50
See more: Unknown Type

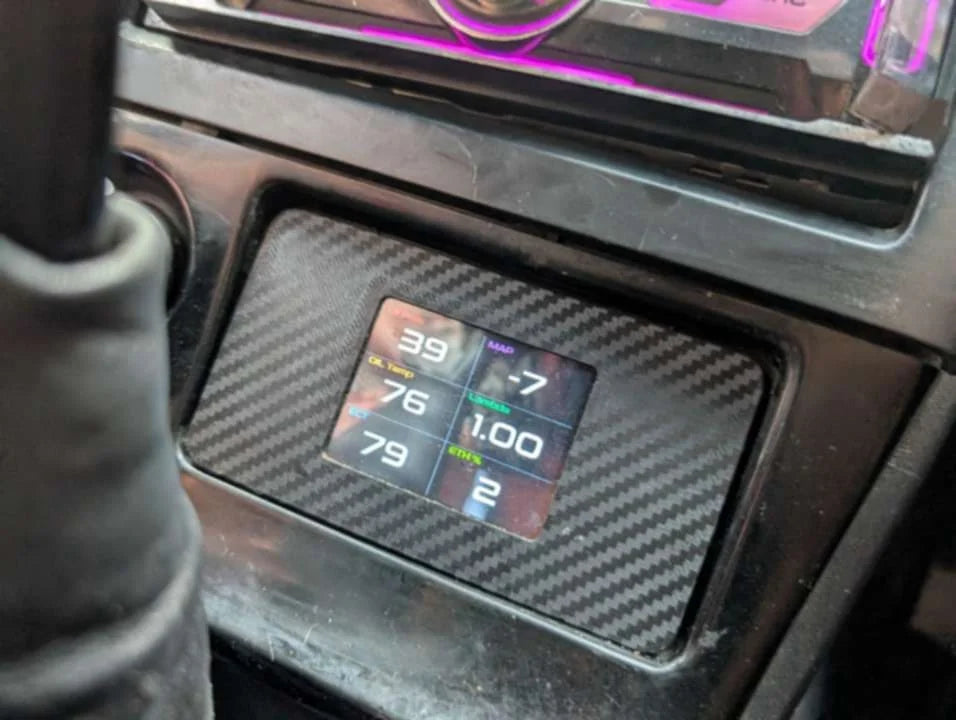

2.4″ Full color touch screen CAN display. The CAN gauge replaces traditional gauges for a clean and simple digital alternative by reading live data directly from the ECM. Several housing options and styles are available. Designed and manufactured in New Zealand with local support.

Features

Housing Options

  • Universal

  • Vehicle Specific

  • Mounting Bracket

Screens

  • Multi-Display x2

  • Boost Gauge

  • Fuel Data

  • Air Fuel Ratio

Connection

Industry standard Deutsch DTM 4 pin receptacle ready to connect directly to many standard automotive CAN interfaces.

Vehicle Specific Versions

Nissan Skyline R32-R34

Toyota Supra A70 86-92



Connection

Wiring

CAN Gauge comes with an industry standard Deutsch DTM 4 pin receptacle ready to connect directly to many standard automotive CAN interfaces. The gauge requires a 1A fused supply and voltage between 5-24VDC.

Pin No. Function
01

Ignition 12V Supply
02

Ground
03

Can Bus Low Signal
04

Can Bus High Signal

Mounting

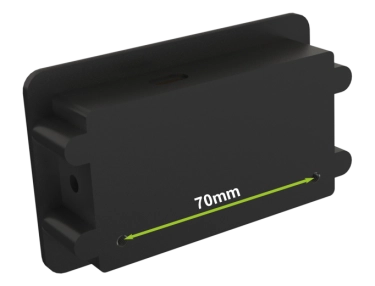

The gauge comes with 2x M4 tapped holes for mounting, Each tapped hole allows a bolt depth of 15mm. Hole pattern: 70mm between centers.


CAN Setup

Link ECU

Link ECU load the AIC can stream provided in the downloads section.

  • CAN ID: 1001

  • Transmission Rate: 100Hz

    Available on order shipping may take an additional 2-5 days from time of purchase
