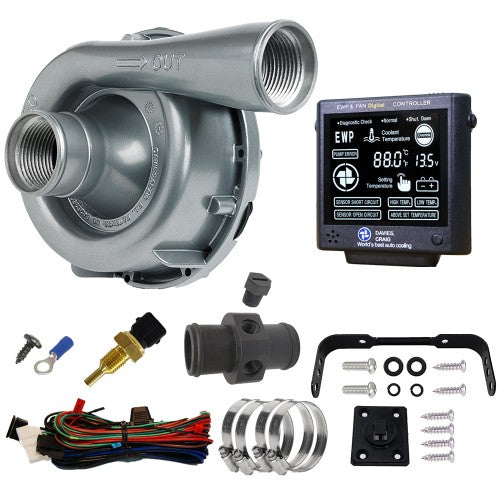

DAVIES CRAIG EWP150 12V 150LPM/40GPM Remote Electric Water Pump & Controller (Part #8970)
$459.00
$439.00
See more: Unknown Type
Muscle up your engine cooling system with the Davies Craig EWP® 150 alloy Electric Water Pump and the LCD EWP®/Fan Digital Controller.
Like all EWPs, this advanced unit is designed for remote mounting in the engine bay to satisfy those higher horsepower, turbocharged, supercharged and ‘worked’ engines which develop excessive heat & intercooler applications.
SUITABLE FOR Standard Engines 5.0L or greater or Modified Engines Supercharged/Turbo, Drag Racing, 4WD, Off Road, Drifting & Speedway
| TECHNICAL SPECIFICATIONS | ||||
| EWP150 - ELECTRIC WATER PUMP | LCD CONTROLLER | |||
| Operating voltage | 3V DC to 15V DC | Voltage range | 12V DC to 29V DC | |
| Maximum current | 10A @ 13V | Display LCD size | 64.6mm (2.54”) x 55.6mm (2.19”) | |
| Flow rate (max) | 150L/min (39.63 US gal/min) @ 13V DC | Maximum current | 12Amps | |
| Operating temp. | -40° to 130°C (-40° to 266°F) | Warning alarm | High & low Temp., Above set temp., Sensor short circuit, Pump error, High & low voltage and Sensor open circuit | |
| Pump design |
Clockwise centrifugal with volute chamber |
Targeted (set) temperatures |
Singular degrees from: 40°C (104°F)to 110°C (230°F) |
|
| Pump weight | 1,170 grams (2.6 lb) | Memory | Set & targeted temperature | |
| Pump material | Aluminium (Powder Coated) | Fan cut-in temp. | 3°C (5.4°F) above the targeted (set) temperature | |
| Burst pressure | 500 kPa (72.5 psi) | Controller type | PCB with micro-processor | |
| Seal | Ceramic face seal |
Sensor type |
Thermister in housing |
|
|
Self Priming |
No, none of our pumps are self-priming |
|||
|
Fits hose size |
35mm to 51mm (1.38” to 2”) |
Overrun/ shutdown | -10°C (14°F) below set/target temperature or 3 minutes | |
| Indicators | Temperature, power, EWP, test, fan, high & low temp, voltage, above set temperature (with alarm) | |||
| Internal Fitting | -Inlet & Outlet: -16AN ORB | Weight | 100 grams (3.5 oz) | |
| Push-On fitting Size |
EWP Inlet & Outlet 38mm
|
Dimensions |
Length = 98mm (3.8") |
|
