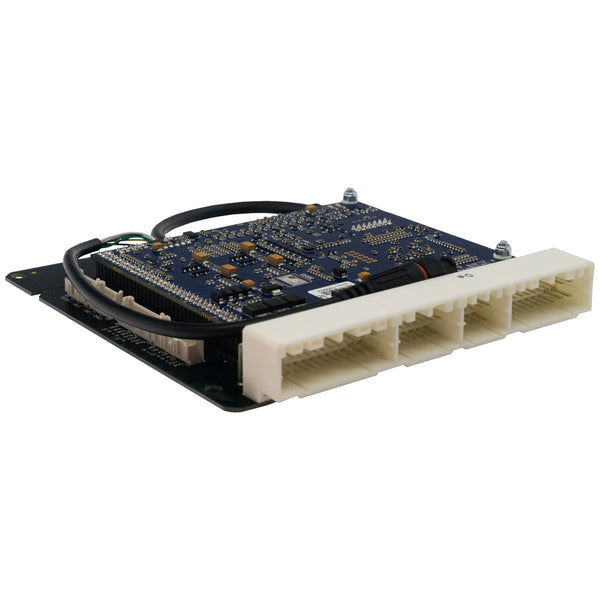

G4X PlugIn ECU EVOLink (IV-VIII) - EVO8X

$2,869.25

G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.
This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

This ECU is designed for the EVO 4-8 4G63 engine.

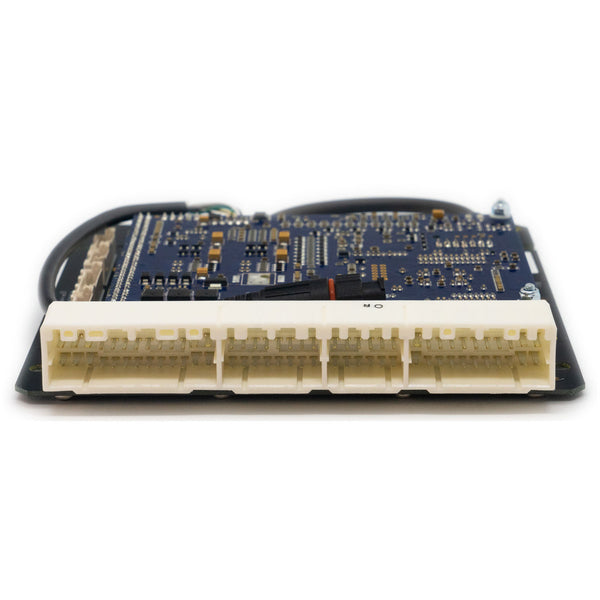

  • Please check your connector matches the header in the listed photo before purchasing.
  • This ECU works for manual transmissions only.
  • Includes onboard 4 bar or 7 bar MAP sensor
  • Most factory features are supported.
  • Check the features tab for I/O expansion options


Suitable applications:

CN9A Lancer Evolution 4

CP9A Lancer Evolution 5, 6 & 6.5 (TME)

CT9A Lancer Evolution 7

CT9A Lancer Evolution 8 (models with 4-plug ECU only)

*Some EVO 8’s have a 3 plug ECU. These applications will need the EVO9X Link ECUG4X



PlugIn Key Features (where applicable):

  • Up to 6D fuel and ignition mapping
  • Precision closed loop cam control (four cam, independent control)
  • Sequential fuel delivery
  • Digital triggering, all OEM patterns
  • OEM idle hardware supported
  • 5D boost control with three switchable tables
  • Motorsport features - antilag, launch, flat shift
  • Continuous barometric correction (on board)
  • CAN port
  • QuickTune - automated fuel tuning
  • Individual cylinder correction
  • USB tuning cable included
  • Stats recording into on-board memory
  • Gear compensations for spark, boost and fuel
  • Real time selectable dual fuel, ignition and boost maps
  • Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
  • Boost control referenced to gear, speed or throttle position
  • 512 mega bytes data logging memory
  • Staged injection
  • Knock with "windowing"


I/O Expansion Options:
The following expansion connector inputs/outputs are provided:
Expansion connector 1
Gnd                Sensor Ground Only
+5V Out        Low Current +5V Supply
DI6                Digital Input
DI7                Digital Input
An Volt 5        Analog 0-5V input
An Volt 6        Analog 0-5V input
An Temp 3        Temperature sensor input
An Temp 4        Temperature sensor input

Expansion connector 2
Ign 5                Ignition 5 Auxiliary output
Ign 6                Ignition 6 Auxiliary output
Ign 7                Ignition 7 Auxiliary output
DI 8                Digital Input
Volt 8                Analog 0-5V input
Volt 9                Analog 0-5V input
Volt 10                Analog 0-5V input
Volt 11                Analog 0-5V input
