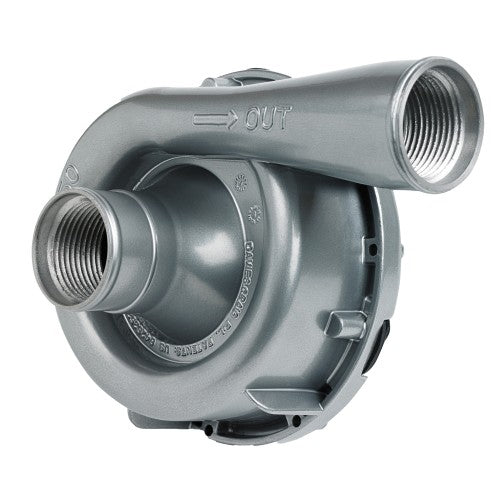

EWP150 - 12V 150LPM/40GPM REMOTE ELECTRIC WATER PUMP (#8160)
The world’s first universal-fit, automotive Electric Water Pump goes one better with the EWP®150. Suitable for all makes and models – will excel on large six-cylinder engines, V8 engines, heavy duty 4WDs and most engines over 400 HP.
Muscle up your engine cooling system with the Davies Craig EWP® 150 alloy Electric Water Pump and the LCD EWP®/Fan Digital Controller.
Like all EWPs, this advanced unit is designed for remote mounting in the engine bay to satisfy those higher horsepower, turbocharged, supercharged and ‘worked’ engines which develop excessive heat & intercooler applications.
SUITABLE FOR Standard Engines 5.0L or greater or Modified Engines Supercharged/Turbo, Drag Racing, 4WD, Off Road, Drifting & Speedway
| TECHNICAL SPECIFICATIONS | |
| Operating voltage | 3V DC to 15V DC |
| Maximum current | 10A @ 13V |
| Flow rate (max) | 150L/min (39.63 US gal/min) @ 13V DC |
| Operating temp. | -40° to 130°C (-40° to 266°F) |
| Pump design |
Clockwise centrifugal with volute chamber |
| Pump weight | 1,170 grams (2.6 lb) |
| Pump material | Aluminium (Powder Coated) |
| Burst pressure | 500 kPa (72.5 psi) |
| Seal | Ceramic face seal |
|
Self Priming |
No, none of our pumps are self-priming |
|
Fits hose size |
35mm to 51mm (1.38” to 2”) |
| Push-On fitting Size |
EWP Inlet & Outlet 38mm
|
| Internal Fitting | -Inlet & Outlet: -16AN ORB |
